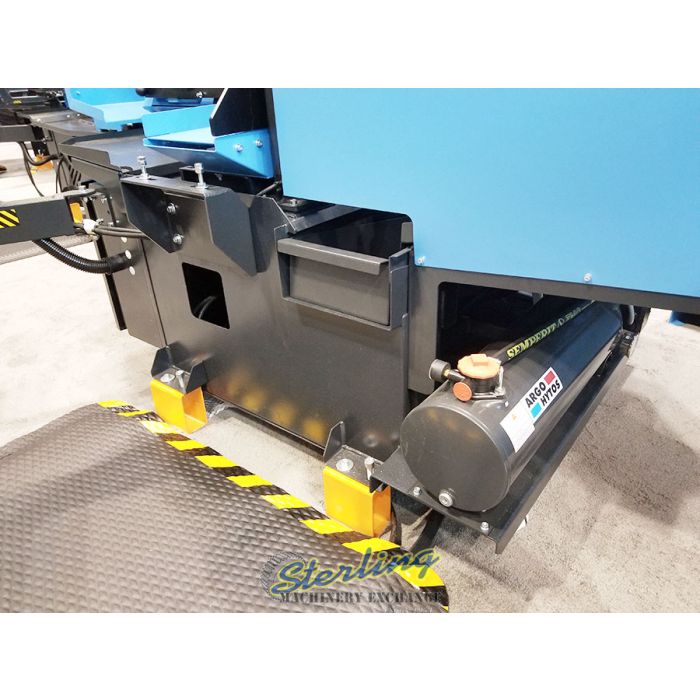

11" x 12" Brand New DoALL CNC Horizontal Bandsaw, Mdl. S-320CNC, SAW MICRO HMI Saw Control, Overfeed Protection, Discharge Chute, Digital Readout of Cutting Angle, Pulley Driven Band Brush, Work Light, Work Height Sensor, Variable Frequency Drive, Flood Coolant, Tool Kit, One DoAll Bi-Metal Saw Blade, Complimentary DoAll Cutting Fluids Package, Instruction & Parts Manuals on CD, Emergency Stop Button for Immediate Shutdown of Saw, Control Panel has Angular DRO Display, #SMS320CNC

DoAll
Stock No:
#SMS320CNC
Manufacturer:
DoAll
Model:
S-320CNC
Capacity:
11" x 12"
Condition:
New
Brand New DoALL CNC Horizontal Bandsaw
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Cutting Capacity
.
Rectangle Tube (90 Degree)
12.5" x 11.8"
Round Tube (90 Degree)
11.8"
Solid Round (90 Degree)
7"
Maximum Nesting Capacity
12.5" x 6.3"
Minimum Nesting Capacity
7.9" x 0.4"
Miter Cutting
0 degree to 60 degree Right
Miter Cutting Capacity
.
45 Degree Round Tube Right
11.8"
45 Degree Rectangle Tube Right
11.8" x 9.8"
45 Degree Round Solid Right
4.3"
60 Degree Round Tube Right
7.9"
60 Degree Rectangle Tube Right
7.9" x 7.9"
60 Degree Round Solid Right
3.1"
Band Saw Blade Dimensions
1-1/4" Width, 178" Length
Band Speed
65 - 328 fpm
Material Pass Line Height
37"
Auto Index Single Stroke (Min - Max)
0.2" to 57"
Auto Index Multiple Stroke (Max)
394"
Minimum Butt End
0.8"
Hydraulic Pump
1.14 HP
Coolant Pump
0.07 HP
Coolant Capacity
5-1/4 gal
Horsepower
4 hp
Voltage
460vac, 3 Phase, 60hz, Wye Configuration Required
Dimensions (L x W x H)
183" x 90" x 86"
WEIGHT
2650 lbs
EQUIPPED WITH
Work Light
SAW MICRO HMI Saw Control
Emergency Stop Button For Immediate Shutdown Of Saw
Flood Coolant
Discharge Chute
Digital Readout Of Cutting Angle
Pulley Driven Band Brush
Overfeed Protection
Tool Kit
Instruction & Parts Manuals On CD
One DoAll Bi-Metal Saw Blade
Work Height Sensor
Variable Frequency Drive
Control Panel Has Angular DRO Display
Complimentary DoAll Cutting Fluids Package

DISTRIBUTOR OF THE YEAR AWARD

OPTIONAL EQUIPMENT AND TOOLING
doall - 6.6' input or output conveyor. 15.4
Name: DoAll - 6.6' Input or Output Conveyor. 15.4" Cylinder Width, 134 lbs/ft Capacity. Has Adjustable Leg.
Price: Call For Price
Stock No:# RD-2000/390
ADD TO MACHINE QUOTE:

doall - 3.3' input or output conveyor. 15.4
Name: DoAll - 3.3' Input or Output Conveyor. 15.4" Cylinder Width, 134 lbs/ft Capacity. Has Adjustable Leg.
Price: Call For Price
Stock No:# RD-1000/390
ADD TO MACHINE QUOTE:

doall - 3.3' output conveyor for angle cutting. 15.4
Name: DoAll - 3.3' Output Conveyor for Angle Cutting. 15.4" Cylinder Width, 441 lbs/ft Capacity. Has Adjustable Leg.
Price: Call For Price
Stock No:# 300-LR-RDZ
ADD TO MACHINE QUOTE:

doall - single fixed vertical conveyor roller. 7.8
Name: DoAll - Single Fixed Vertical Conveyor Roller. 7.8" Cylinder Height. Mounts to the RD Table.
Price: Call For Price
Stock No:# RB-200
ADD TO MACHINE QUOTE:

doall - single adjustable vertical conveyor roller. 7.8
Name: DoAll - Single Adjustable Vertical Conveyor Roller. 7.8" Cylinder Height. 15.4" Cylinder Width. Requires RB for Operation.
Price: Call For Price
Stock No:# RBS-200/390
ADD TO MACHINE QUOTE:

doall - single adjustable horizontal conveyor roller rack for nesting. adjusts up to 15.4
Name: DoAll - Single Adjustable Horizontal Conveyor Roller Rack for Nesting. Adjusts up to 15.4" length. Requires RB and RBS for Operation.
Price: Call For Price
Stock No:# RHS-390
ADD TO MACHINE QUOTE:

doall - heavy duty conveyor roller. 15.4
Name: DoAll - Heavy Duty Conveyor Roller. 15.4" Cylinder Length. 882 lbs/ft Capacity.
Price: Call For Price
Stock No:# RD-VR-390
ADD TO MACHINE QUOTE:

doall - adjustable height cylinder. 15.4
Name: DoAll - Adjustable Height Cylinder. 15.4" Cylinder Width. 134 lbs/ft Capacity.
Price: Call For Price
Stock No:# R-390
ADD TO MACHINE QUOTE:

doall - conveyor support
Name: DoAll - Conveyor Support
Price: Call For Price
Stock No:# RDN-390
ADD TO MACHINE QUOTE:

doall - variable vise pressure control (set of 2)
Name: DoAll - Variable Vise Pressure Control (Set of 2)
Price: Call For Price
Stock No:# 300-RTS-A
ADD TO MACHINE QUOTE:

doall - chip pan with drain
Name: DoAll - Chip Pan with Drain
Price: Call For Price
Stock No:# BOX-TRI
ADD TO MACHINE QUOTE:

doall - handle for chip box
Name: DoAll - Handle for Chip Box
Price: Call For Price
Stock No:# BOX-TAH
ADD TO MACHINE QUOTE:

doall - cut piece collection box with drain
Name: DoAll - Cut Piece Collection Box with Drain
Price: Call For Price
Stock No:# BOX-PCS
ADD TO MACHINE QUOTE:

doall - wear parts service kit
Name: DoAll - Wear Parts Service Kit
Price: Call For Price
Stock No:# 300X320-QPARTS
ADD TO MACHINE QUOTE:

doall - copy of instruction and parts manuals on cd
Name: DoAll - Copy of Instruction and Parts Manuals on CD
Price: Call For Price
Stock No:# 299998
ADD TO MACHINE QUOTE:

doall - magnetic wand chip remover
Name: DoAll - Magnetic Wand Chip Remover
Price: Call For Price
Stock No:# 226028
ADD TO MACHINE QUOTE:

doall - mist style saw band lubrication (factory installation)
Name: DoAll - Mist Style Saw Band Lubrication (Factory Installation)
Price: Call For Price
Stock No:# MINI LUBE
ADD TO MACHINE QUOTE:

doall - worm chip conveyor and large chip pan with drain (factory installation)
Name: DoAll - Worm Chip Conveyor and Large Chip Pan with Drain (Factory Installation)
Price: Call For Price
Stock No:# 300-VTT
ADD TO MACHINE QUOTE:

doall - front and rear hydraulic vise nesting (set of 2) (factory installation)
Name: DoAll - Front and Rear Hydraulic Vise Nesting (Set of 2) (Factory Installation)
Price: Call For Price
Stock No:# 290-HP-A
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
