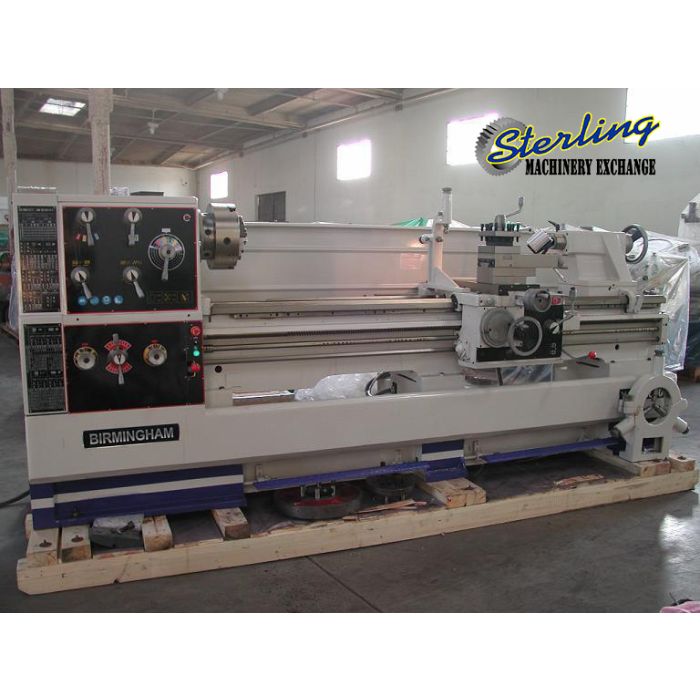

32"/41" x 80" birmingham YCL-3280, New #SMYCL3280
Machine Type:
LATHES
Manufacturer:
Birmingham
Model:
YCL-3280
Capacity:
32"/41" x 80"
Condition:
New
Stock No:
#SMYCL3280
DETAILED SPECIFICATION
| Capacity | 32"/41" x 80" |
| Swing Over Bed | 32" |
| Swing Over Cross Slide | 22-1/2" |
| Swing in Gap | 41" |
| Length of Gap | 10" |
| Center Height | 16" |
| Distance Between Centers | 80" |
| Width Of Bed | 16" |
| Max. Section of Tool | 1" x 1" |
| Max. Travel of Cross Slide | 16-1/2" |
| Max. Travel of Compound Rest | 9" |
| Spindle Bore | 4-1/8" |
| Taper of Spindle Bore | M.T. No 5 |
| Spindle Nose | D1 - 8 |
| Tailstock Quill Diameter | 3-1/2" |
| Spindle Speeds - Steps | 16 |
| Range Of Spindle Speeds | 25 - 1600rpm |
| Lead Screw Pitch | 40mm x 2 TPI |
| Inch Threads | 7/16" - 80 TPI |
| Metric Threads | 0.45-120mm (54 Kinds) |
| Diametrical Pitches | 7/8-160DP (42 Kinds) |
| Modular Pitches | 0.25-60MP (46 Kinds) |
| Motor | 10 HP |
| WEIGHT | 9,920 LBS |
Features
Face Plate
4 Way Tool Post
3 Jaw Chuck
Steady Rest
Thread Chasing Dial
4 Jaw Chuck
Taper Attachment
Splash Guard
Oil Gun
113mm(1:20)MT5 Sleeve And MT5 Center
Follow Rest
Set Of Wrenches
Operation Manual And Part List
Drive Plate
Rapid Travel
