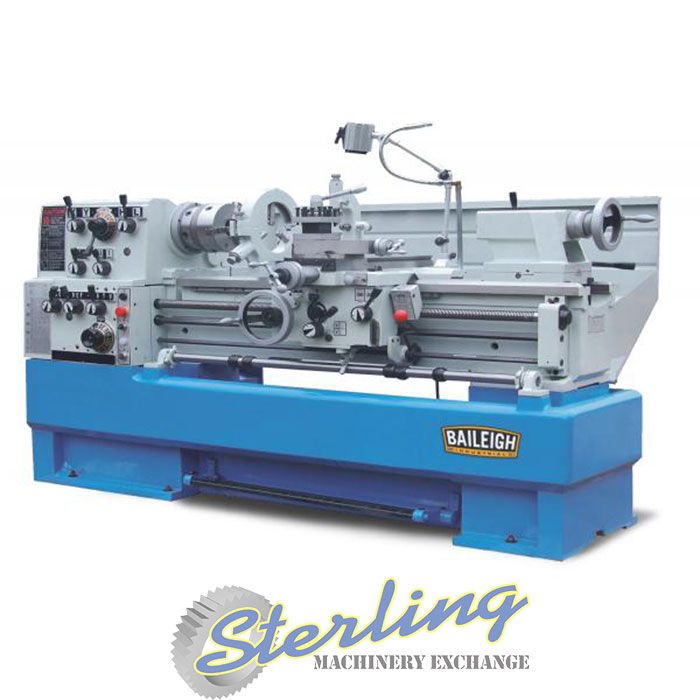

18"/27" x 60" Brand New Baileigh Precision Lathe, Mdl. PL-1860E, 2 Axis Digital Readout, 3" Spindle Bore, 8" 3 Jaw Chuck, 13" 4 Jaw Chuck, Face Plate, Steady & Follow Rest, Quick Change Tool Holder, Coolant System, Live Center, 5 Longitudinal Feed Stops, Rear Splash Guard, #SMPL1860E

Stock No:
#SMPL1860E
Manufacturer:
Baileigh
Model:
PL-1860E
Capacity:
18"/27" x 60"
Condition:
New
Brand New Baileigh Precision Lathe
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
Maximum Swing Over Bed
18"
Maximum Swing Over Cross Slide
8.6"
Maximum Swing in Gap
Diameter
27.125"
Length
6.125"
Center Length
60"
Bed Width
11.81"
Spindle Nose
D1 - 6"
Spindle Bore
2.25"
Spindle Taper (Nose)
Morse #6
Spindle Taper (Sleeve)
Morse #4
Speed Number
12
Bore
1.5"
Nose
D1 - 4"
Taper (Nose)
Morse #5
Taper (Sleeve)
Morse #3
Speed Range
25 - 2000 RPM
Cross Slide Travel
11.365"
Compound Rest Travel
4.72"
Lead Screw Diameter
1.25"
Lead Screw Thread
4 TPI
Threads
Imperial (Quantity / Type)
60 / 2 - 112 TPI
Metric (Quantity / Type)
41 / 0.1 - 14mm Pitch
Diametrical (Quantity / Type)
50 / 4 - 112 DP
Module (Quantity / Type)
34 / 0.1 - 7 M.P.
Longitudinal Feeds
Imperial (Quantity / Type)
42 / 0.0011" - 0.0633"/rev.
Metric (Quantity / Type)
42 / 0.033 = 1.7 mm/rev.
Cross Feeds
Imperial (Quantity / Speed)
42 / 0.00033 - 0.01837"/rev.
Metric (Quantity / Speed)
42 / 0.014 - 0.784 mm/rev.
Quill Diameter
2.36"
Quill Travel
4.75"
Quill Taper
Morse #4
Coolant Motor
1/8 H.P.
Main Motor
7.5 H.P.
Power Requirement
220V / 3-Phase
Dimension (L x W x H)
108" x 41" x 54"
WEIGHT
5247 lbs
EQUIPPED WITH
Face Plate
Coolant System
2 Axis Digital Readout
3" Spindle Bore
Rear Splash Guard
8" 3 Jaw Chuck
13" 4 Jaw Chuck
Live Center
Steady & Follow Rest
Quick CHange Tool Holder
5 Longitudinal Feed Stops
* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
