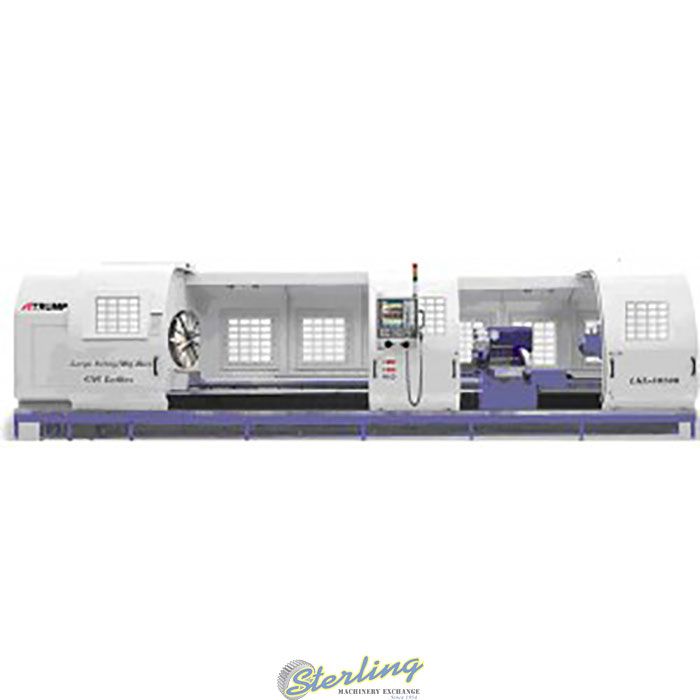

51" x 240" atrump KL50240NC, New #SMKL50240NC
Machine Type:
LATHES
Manufacturer:
Atrump
Model:
KL50240NC
Capacity:
51" x 240"
Condition:
New
Stock No:
#SMKL50240NC
DETAILED SPECIFICATION
| Basic Dimensions | |
| Height of Center | 25.59" |
| Swing Over Bed | 51" |
| Swing Over Cross Slide | 35" |
| Distance Between Centers | 240" |
| Width of Bed Ways | 30" |
| Spindle | |
| Spindle Nose Mounting | A2-11 |
| Taper of Spindle Bore | MT #7 (Sleeve MT #5) |
| Range Of Spindle Speeds | Auto Shift High - Middle - Low |
| Longitudinal Travel (Z Axis) | 110.5" |
| Cross Slide Travel (X Axis) | 26" |
| Rapid Travel/Cutting Feed Rate | 180/120 ipm |
| Tool | |
| Max. Size Cutting Tool | 1-1/4" |
| Tailstock | |
| Quill Diameter | 4" |
| Quill Taper | MT #6 |
| Quill Travel | 11.8" |
| Motor | |
| Main Spindle Motor | 30 H.P. |
| Warranty | One Year Limited Warranty |
Features
Coolant System
Fagor 8055i Control
User Friendly Controls
6" Spindle Hole With 30 H.P. DELTA Vector Spindle Drives
Halogen Work Light
Rugged Meehanite Casting
Hardened And Ground Bed Ways
Turcite-B Lined On Sliding Ways & Gibbs With Precision Hand Scraped
Maxi Torque At Auto Gear Shifting In 3 Gear Range
Precision Ground Ball-Screw With Double Nuts
Dual Electric Hand Wheels For Manual Operation
Manual Tailstock
USB 2.0 Port
Telescopic Steel Way Cover On X Axis
Full Enclosed Guarding
X & Z Dedicated Jog Buttons
Constant Surface Speed
PC Based
Auto Lube System
120 GB Solid State Hard Drive
Ethernet
* Temporary specifications subject to verification.
All quotations subject to prior sale.
New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
