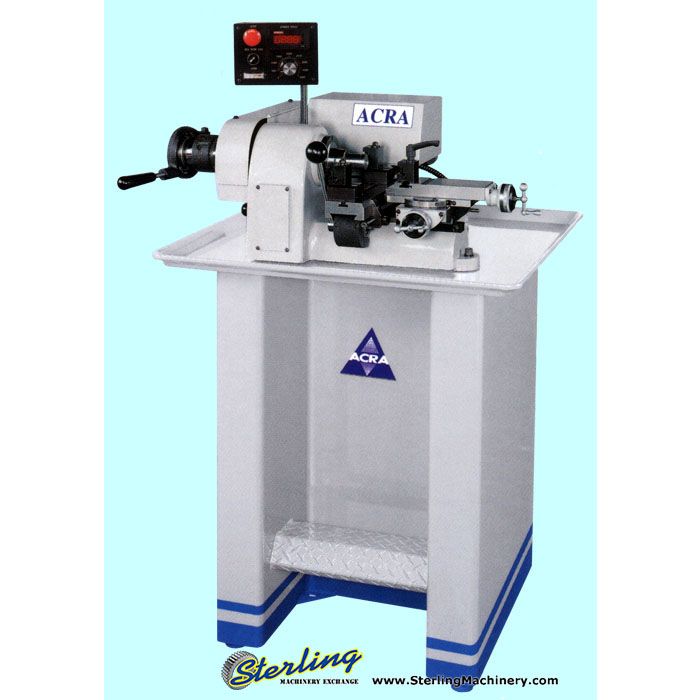

9" x 10" acra 27EVS(AFL), New #SM27AFL

Machine Type:
LATHES
Manufacturer:
Acra
Model:
27EVS(AFL)
Capacity:
9" x 10"
Condition:
New
Stock No:
#SM27AFL
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Spindle Capacity w/ Chuck 5"
Spindle w/ Expanding Collets 3"
Spindle w/ Round 5C Collets 1-1/16"
Spindle w/ Hexagon 5C Collets 7/8"
Spindle w/ Square 5C Collets 3/4"
Spindle w/ Step Chucks 1-1/16" - 6"
Spindle Nose Diameter 2-3/16"
Spindle Nose 5C (10 Degrees)/4 Degree x Taper
Spindle RPM (Variable) 0 - 4000 RPM
Spindle Motor 1 HP
Bar Stock Diameter (5C Collet) 1-1/16"
Coolant Pump Optional
Net Weight 660 LBS
Shipping Weight 820 LBS
Dimensions (L x W x H) 36" x 36" x 55"
Features
Lever 5C Collet Closer

DISTRIBUTOR OF THE YEAR AWARD

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
