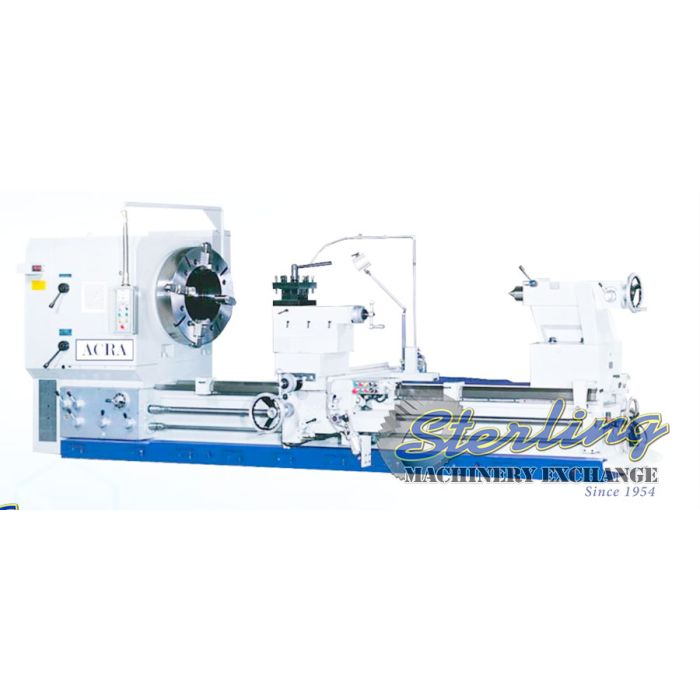

51"/72" x 160" acra SGT51160, New #SMSGT51160

Machine Type:
LATHES
Manufacturer:
Acra
Model:
SGT51160
Capacity:
51"/72" x 160"
Condition:
New
Stock No:
#SMSGT51160
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity 51"/72" x 160"
Swing Over Bed 51.57"
Swing Over Cross Slide 39.37"
Distance Between Centers 160"
Swing in Gap 72.83"
Hole Thru Spindle 6"
Spindle Nose A2-11
Spindle Speeds 3 - 300 RPM
Width of Gap 18.5"
Pitch of Leadscrew 2 T.P.I
Inch Threads 1/4 - 30 TPI (70 Kinds)
Metric Threads 1 - 120 MM
Diametrical Threads 1 - 120 D.P.
Module Pitches 0.25 - 30 mm
Longitudinal Feeds 0.085~10.08 mm/rev
Cross Feeds 0.042 ~ 5.04 mm/rev
Spindle Taper MT #6
Cross Slide Travel 25"
Compound Slide Travel 16.5"
Tailstock Spindle Diameter 4-7/8"
Tailstock Quill Travel 13-3/8"
Width Of Bed 26"
Horsepower 30 H.P.
Voltage 220/440V AC/3PH
Dimensions Machine (L x W x H) 260" x 80" x 80"
WEIGHT 25,000 LBS.
Features
Center (M.T.#6)
Steady Rest
4 Way Rapid Traverse
Coolant System
Electromagnetic Spindle Brake
Tool Box & Tools
Anchor Bolts
Tool Post Wrench
Center Sleeve
Work Light

DISTRIBUTOR OF THE YEAR AWARD

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
