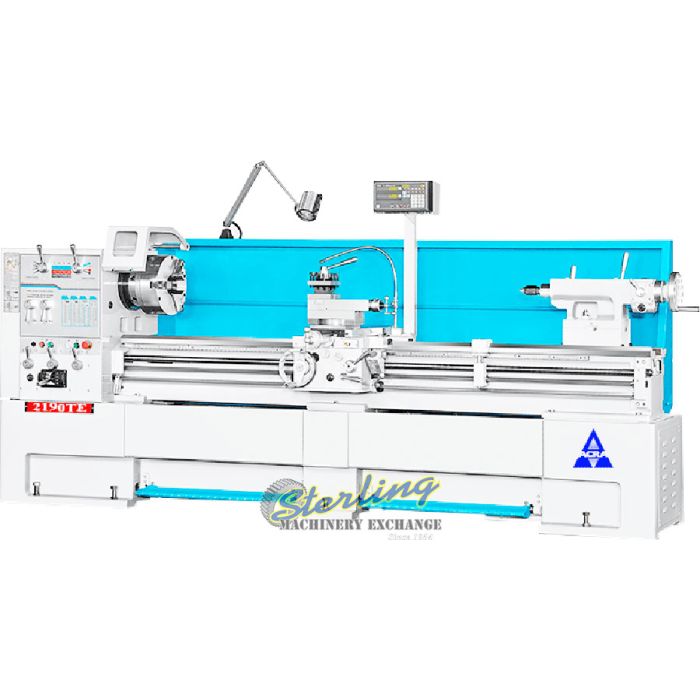

21″/28″ x 86″ Brand New Acra (3-1/8" Bore) Precision High Speed Gap Bed Engine Lathe, Mdl. 49747, 12" 3- Jaw Chuck, 16" 4-Jaw Chuck, Full Length Splash Guard, Steady Rest / Follow Rest, Coolant System, Foot Brake, Work Lamp, Gap Bed, 4 position square tool post, Tool Box With Tools, 2 Speed Tailstock, #SM2190TE3

Stock No:
#SM2190TE3
Manufacturer:
Acra
Model:
2190TE-3
Capacity:
21"/28" x 86"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
21"/28" x 86"
Swing Over Bed
21-3/8"
Swing Over Cross Slide
15-1/4"
Swing in Gap
28-3/4"
Distance Between Centers
86.6"
Center Height
10.67"
Bed Width
12-1/2"
Spindle Nose
D1-8
Spindle Bore
3-1/8"
Taper of Spindle
MT NO.5
Spindle Speeds
Steps: 12 step
Spindle Speeds
Range: 26 ~ 1,500 RPM
Cross Slide Travel
11.81"
Compound Slide Travel
5.9"
Inch Threads
2~72 TPI
Metric Threads
0.2 ~ 14 mm
Longitudinal Feeds
0.0015 ~ 0.04"/rev
Cross Feeds
0.00075 ~ 0.02"/rev
Quill Diameter:
2.67"
Quill Travel:
6"
Quill Taper:
MT NO.4
Spindle Drive Motor:
12-1/2 HP
Voltage:
230V/460V AC / 3 PH
WEIGHT
5700 LBS
Dimensions
146 × 46 × 73 in
EQUIPPED WITH
12" 3- Jaw Chuck
Coolant System
Work Lamp
16" 4-Jaw Chuck
Steady Rest / Follow Rest
Gap Bed
Foot Brake
Full Length Splash Guard
4 Position Square Tool Post
2 Speed Tailstock
Tool Box With Tools

DISTRIBUTOR OF THE YEAR AWARD

OPTIONAL EQUIPMENT AND TOOLING
acra - lever type 5c collet closer jfk
Name: Acra - Lever Type 5C Collet Closer JFK
Price: Call For Price
Stock No:# ACRA3A
ADD TO MACHINE QUOTE:

acra - lever type 5c collet closer jfk
Name: Acra - Lever Type 5C Collet Closer JFK
Price: Call For Price
Stock No:# ACRA3B
ADD TO MACHINE QUOTE:

acra 10
Name: Acra 10" Steady Rest for TE Lathes
Price: Call For Price
Stock No:# ACRA10STDYTE
ADD TO MACHINE QUOTE:

acra- newall dp700 10
Name: Acra- Newall DP700 10" x 86" DRO for TE Lathes INSTALLED
Price: Call For Price
Stock No:# ACRADP700
ADD TO MACHINE QUOTE:

acra- newall nms300 2 axis digital read out system installed for acra te lathes
Name: Acra- NEWALL NMS300 2 Axis Digital Read Out System Installed for Acra TE Lathes
Price: Call For Price
Stock No:# ACRANEWALLNMS300DRO
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.

  All quotations subject to prior sale.

  New pricing is good only at time of invoice and must be paid Immediately to guarantee no price increases by the manufacturers.
