2" Brand New Baileigh Hydraulic Rotary Draw Tube & Pipe Bender, Mdl. RDB-175, Low Pressure Industrial Grade Hydraulic System, Replaceable Bronze Bushings at all Pivot Points, Anti-Spring Back Mechanism, 110/220V, Lifetime Technical Support by Telephone, Portable, Bends to 180 Degrees in 12 Seconds, Foot Pedal Operation, Ratchet Counter Die Positioner, Wheels on Base, Quick Tooling Changes, Digital Readout for Bend Repeatability, Automatic Stop Programming, #SMRDB175

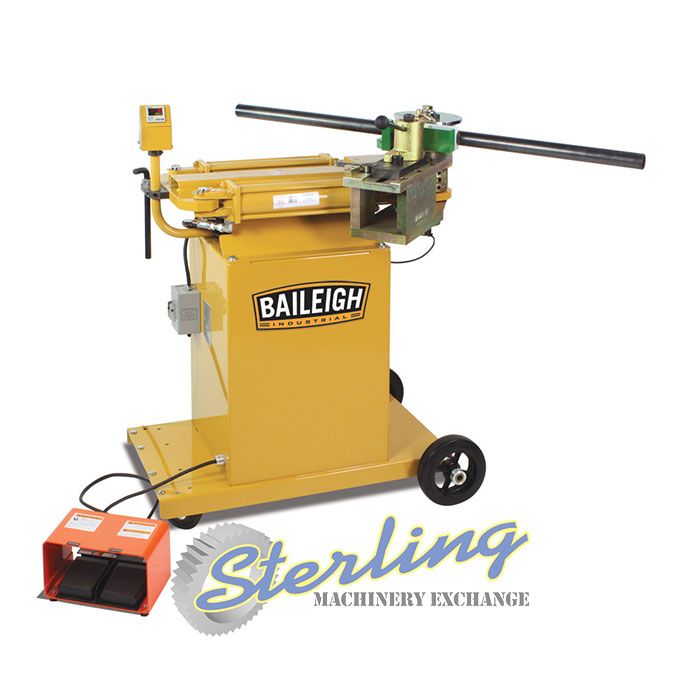

Brand New Baileigh Hydraulic Rotary Draw Tube & Pipe Bender

Stock No: #SMRDB175
Manufacturer: Baileigh
Model: RDB-175
Capacity: 2"
Condition: New
Starting At:
$7,811.00
financing
FINANCING
AS LOW AS
$185.12

MONTH
discount
DETAILED SPECIFICATION
Overall Capacity2"
.
Schedule 40
Mild Steel Pipe2"
Aluminum Pipe2"
Stainless Steel Pipe1.5"
Mild Steel Round Tube2.5"
Mild Steel Round Tube Wall0.125"
Aluminum Round Tube2.5"
Aluminum Round Tube Wall0.156"
Stainless Steel Round Tube2.375"
Stainless Steel Round Tube Wall0.125"
Chromolly Round Tube2"
Chromolly Round Tube Wall0.125"
Mild Steel Solid Rod1.25"
Mild Steel Square Tube2"
Mild Steel Square Tube Wall0.125"
Maximum Speed to 180 Degrees12 seconds
Minimum OD0.25"
Maximum Center Line Radius (CLR)Dependent on Material Outside Diameter
Minimum Center Line Radius (CLR)0.5"
Warranty1 Year Parts Only
Voltage110/220V ~ 1 Phase
Dimensions (L x W x H)44" x 28" x 42"
Weight630 lbs
EQUIPPED WITH
Low Pressure Industrial Grade Hydraulic System
110/220V
Bends to 180 Degrees in 12 Seconds
Ratchet Counter Die Positioner
Wheels on Base
Quick Tooling Changes
Digital Readout for Bend Repeatability
Automatic Stop Programming
Replaceable Bronze Bushings at all Pivot Points
Anti-Spring Back Mechanism
Lifetime Technical Support by Telephone
Portable
Foot Pedal Operation
