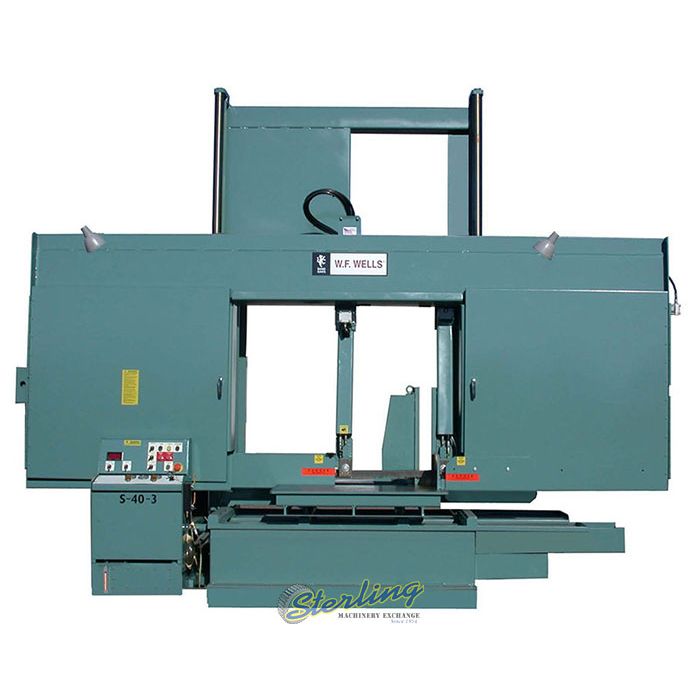

40" x 40" Brand New W.F. Wells Semi-Automatic Hydraulic Horizontal Large Capacity Twin Post Bandsaw, Mdl. S-40-3, Double Column with Linear Bearings (For Maximum Capacity & Rigidity), Hydraulic Vise with Variable Pressure, Adjustable Hydraulic Feed Rate, Hydraulic Blade Tension, Automatic End-of-Cut Shut Off, Automatic Broken Blade Shut Off, Hydraulic Guide Arm Positioning, Positive Frame Feed, Hydraulic Controlled Down Feed, Hydraulic Powered Blade Brush, Hydraulic Chip Conveyor, Blade & Belt Guards, Flood Coolant System, Spring Loaded Carbide Guides, Work Light, Operator Manual & Parts List, #SMS403

W.F. Wells
Stock No:
#SMS403
Manufacturer:
W.F. Wells
Model:
S-40-3
Capacity:
40" x 40"
Condition:
New
Print a Quick Quote!
View Gallery
DETAILED SPECIFICATION
Capacity
40" x 40"
Operation Type
Semi-Automatic
45 Degrees
45 Degree Rectangle
24" x 40"
90 Degrees
90 Degree Rectangle
40" x 40"
Weight Capacity
15,000 LBS
Blade Speed
60 - 500 SFPM
Blade Guide
Carbide Blocks, Spring Tensioned
Blade Tension
Hydraulic
Bandwheel Size
42"
Vise
Hydraulic, Full Stroke
Blade Drive
15 H.P. , AC Vector Drive
Hydraulic Drive
5 H.P. Motor
Sawing Force
0 - 1000 lbs
Coolant Capacity
15 Gallons
Hydraulic Capacity
20 Gallons
Work Height
28"
Vise Jaw Height
24"
Electrics
Wired to NFPA 79 Machine Tool Standards
Warranty
One Year Labor, 90 Day Parts
Horsepower
15 H.P.
Voltage
208/230/460/575V - 3 Phase
Dimensions (L x W x H)
175" x 55" x 130"
WEIGHT
9200 lbs
EQUIPPED WITH
Work Light
Double Column With Linear Bearings (For Maximum Capacity & Rigidity)
Flood Coolant System
Hydraulic Vise With Variable Pressure
Adjustable Hydraulic Feed Rate
Automatic Broken Blade Shut Off
Positive Frame Feed
Hydraulic Blade Tension
Hydraulic Controlled Down Feed
Hydraulic Powered Blade Brush
Hydraulic Chip Conveyor
Hydraulic Guide Arm Positioning
Blade & Belt Guards
Automatic End-of-Cut Shut Off
Spring Loaded Carbide Guides
Operator Manual & Parts List
OPTIONAL EQUIPMENT AND TOOLING
w.f. wells - electric powered conveyor (40
Name: W.F. Wells - Electric Powered Conveyor (40" x 10') (call for part number)
Price: Call For Price
Stock No:# CALL-5
ADD TO MACHINE QUOTE:

w.f. wells - high speed drive & guides (1-1/2
Name: W.F. Wells - High Speed Drive & Guides (1-1/2" Blade) 570-3400 SFPM
Price: Call For Price
Stock No:# CALL-10
ADD TO MACHINE QUOTE:

* Temporary specifications subject to verification.
